POSBANK APEXA G

The new APEXA®G represents the latest evolution of our POS terminal design. Its modern and contemporary styling, outstanding among other POS solutions, blends seamlessly into today’s store environment, while enhancing store decor and brand image. The sleek and compact body with small footprint offers more space at the checkout area for customer engagement and promotions.

New Look. New Design

Modern and Contemporary Styling

Powerful Performer

Low-Power High-Performance. Fanless Operation

Superior Touch Display

Bazel-Free True-Flat 15" LED LCD Display

Install It Anywhere

On A Counter or a Wall

Save Time And Cost

Easy Access to Interfaces

Connect It to All

6 USB, 5 Serial. Optional Expansion Available

COMPACT POWERHOUSE™

The First & The Original Design recognized by Korean Prestigious GOOD DESIGN 2017

Low-Power High-Performance Intel® Celeron® J1900 Quad-Core Processor

Compact and Sleek. Small Footprint

15” Bezel-Free True-Flat PCAP Touch Display with LED Backlight

Multiple I/O Interfaces for Peripherals

Flexible Deployment on a Counter or a Wall

Modern and Contemporary Styling for Interior Decor

Fast Installation and Easy Serviceability

The new APEXA®G represents the latest evolution of our POS terminal design. Its modern and contemporary styling, outstanding among other POS solutions, blends seamlessly into today’s store environment, while enhancing store decor and brand image. The sleek and compact body with small footprint offers more space at the checkout area for customer engagement and promotions.

Superior Touch Display

The touch display is designed for enhanced performance, durability and usability. Industrial-grade LED panel offers bright and crisp images, extended product life and energy efficiency. PCAP and 10-point multi-touch technology delivers intuitive and familiar experiences similar to smartphones or tablets. And speedy operation is assured with the touch display activated with both fingers and gloves.

Connect It to All

Multiple I/O interfaces are offered on the APEXA® G including 6 USB ports, 6 Serial ports and more. Optional expansion is available. Connect it to all the peripheral devices that meet your business needs.

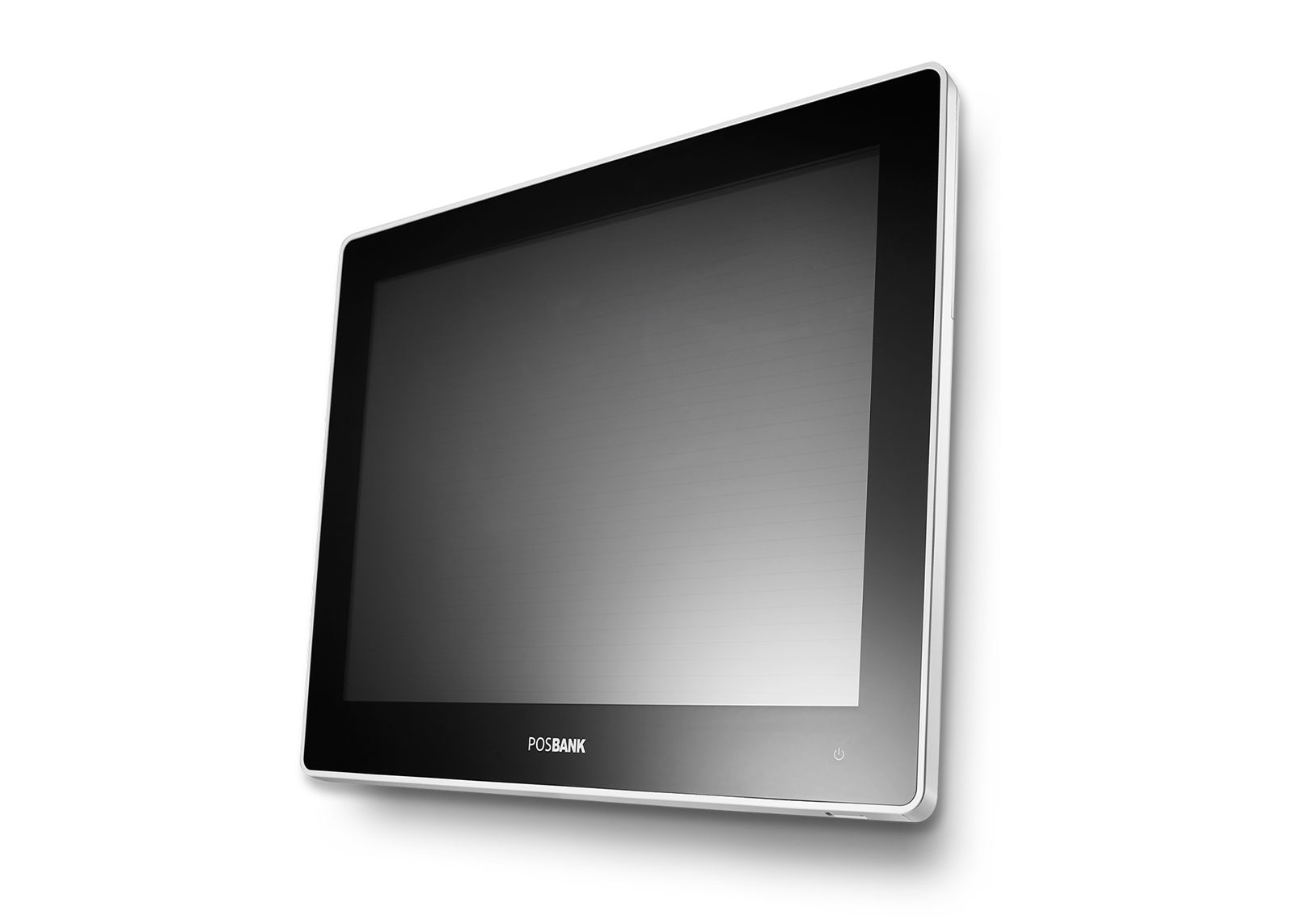

Install It Anywhere

Industry-standard VESA enables flexible mounting options. Place it on a counter or hang it on the wall. Optional VESA-compatible wall mount kit is available. Additional mounting option is available upon request.

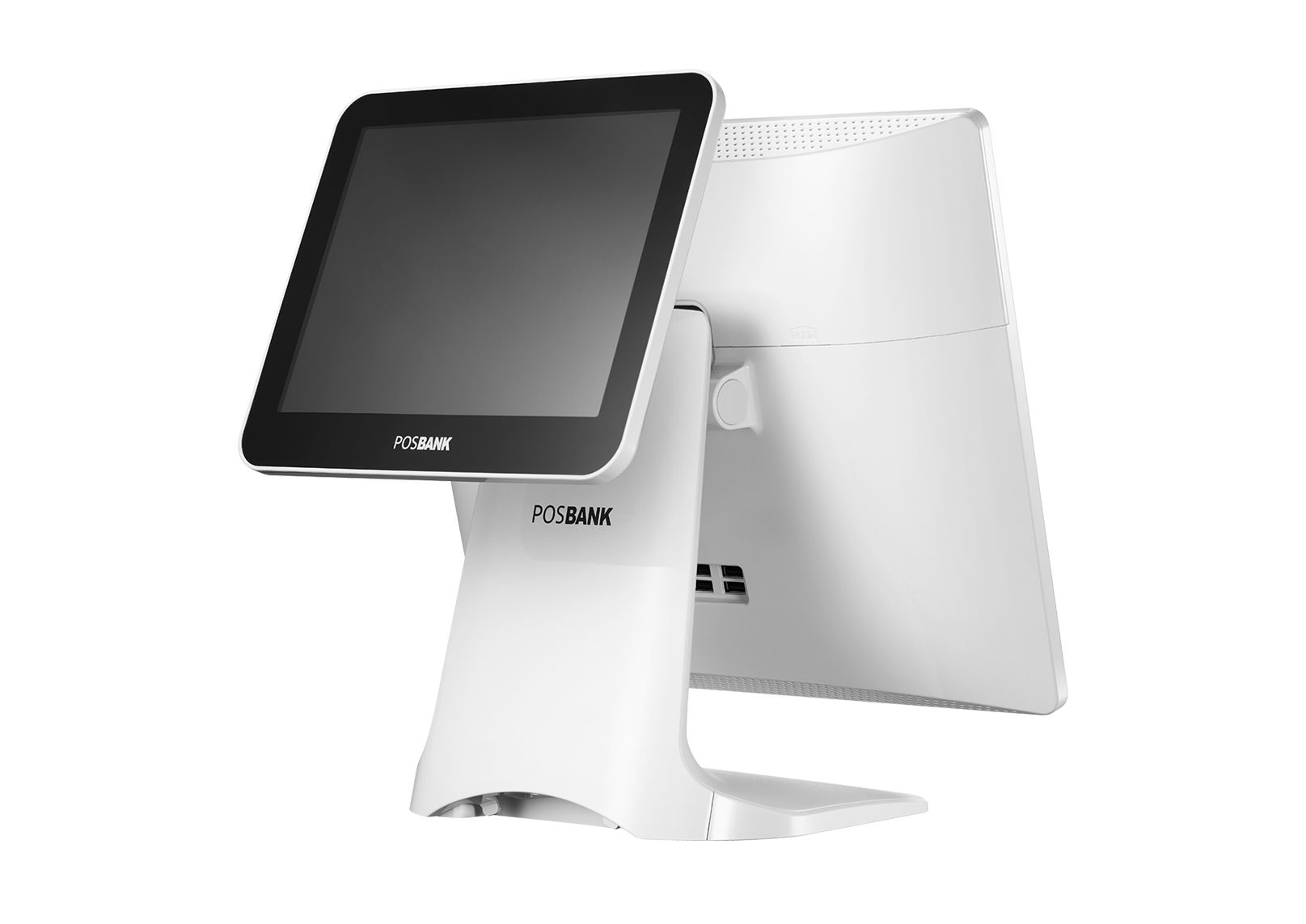

Add Peripherals to Engage Customers

Our 2×20 VFD and 2nd displays give customers information on order, advertisement or promotional event at the point of purchase. Provide them with impressive checkout experiences and create more sales opportunities.

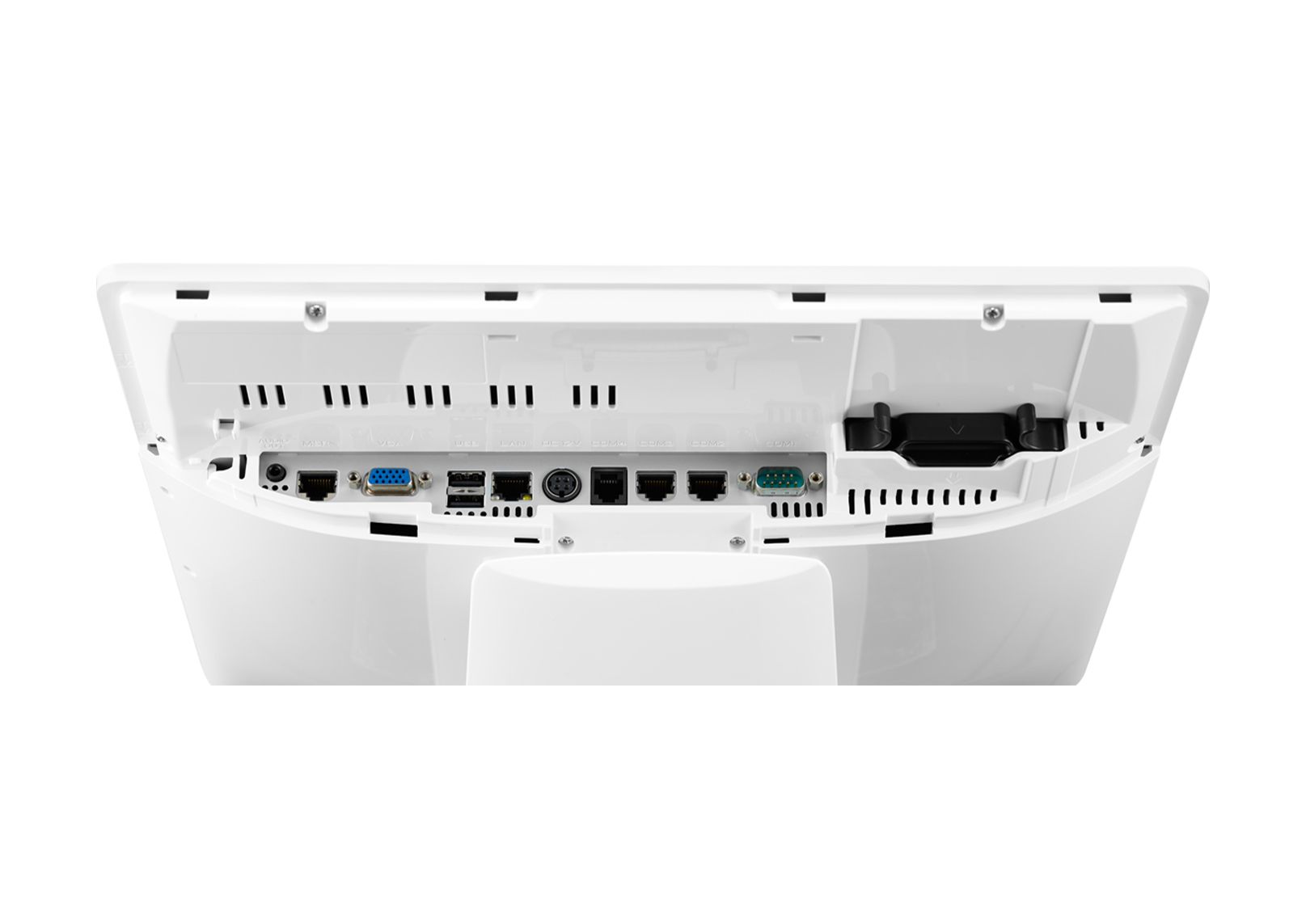

Save Time and Cost

The APEXA® G is designed to provide the quick access to I/O interfaces and storage. Installation, service and upgrade get much faster and easier

System

PROCESSOR	Intel®Celeron® J1900 (2.0 GHz) Quad-Core Processor, Fanless
CHIPSET	Intel® Bay Trail
MEMORY	4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
STORAGE	SATA 2 (3Gb/s) 2.5 inch SSD 128GB, Support AHCI
OS	Windows 7, Windows 8, Windows 10, POS Ready 7

Display

TYPE	15″ TFT LED Backlightㅣ 17″ TFT LED Backlight
RESOLUTION	15″ 1024 x 768ㅣ 17″ 1280 x 1024
BRIGHTNESS	15″ 300 cd/m² (typ.)ㅣ 17″ Max. 300 cd/m² (typ.)
TOUCH SCREEN	Projective Capacitive Touch

Interface

DISPLAY	1 x VGA (With Power Output)
PS/2 PORT	1 (Reserved for Keyboard or Mouse)
LAN	1 x Gigabit Ethernet, RJ-45
POWER DC-IN	1 x (4 Pin Connector)
AUDIO	Realtek ALC 269
USB	4 (Rear 4 = USB 3.0 x 2, USB 2.0 x 2)
SERIAL	6 (COM 1~2 with 5V/12V Power Output on 9 Pins, Jumper) (COM3 with 5V/12V Power Output on 9 Pins, BIOS) (COM4 Only TX/RX, 12V Power Output, Reserved for 2×20 Customer Display) (COM5 Reserved for Cash Drawer Port) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
AUDIO	1 x Line-out, 1 x Mic-in
EXTENSION SLOT	Mini PCIe
POWER SUPPLY	Adaptor 12V, 5A

Physical & Environmental

OPERATING TEMPERATURE	0℃ ~ 40℃ at 10% ~ 90% Humidity
STORAGE TEMPERATURE	-20℃ ~ 80℃ at 10% ~ 90% Humidity
DIMENSIONS (W X H X D)	365 x 305 x 385(mm), 14.3 x 12 x 15.1(inch)
PACKING DIMENSION (W X H X D)	420 x 380 x 485(mm), 16.5 x 14.9 x 19.0(in)
NET WEIGHT	7,500g, 16.5lbs
PACKING WEIGHT	10,000g, 22.0lbs
CERTIFICATION	CE, FCC, KC
COLOR	High Gloss Black, High Gloss White

Options & Peripherals

DISPLAY	17″ TFT LED Backlight, 1280 x 1024
TOUCH SCREEN	5-Wired Resistive
2ND DISPLAY	9.7″, 12.1″, 15″ LCD Disply, 1024 x 768
CUSTOMER DISPLAY	VFD, 20 Columns x 2 Lines
I/O EXPANSION	4 x USB 2.0 (Side) 1 x Parallel Port (D-SUB 25 Pins) 1 x Cash Drawer Port (Factory Option)
STORAGE	2.5 inch SSD 128GB
MAGNETIC STRIPE READER	Comply with ISO 7811, Support 1 & 2 & 3 Track
SMART CARD READER	EMV Level 1, 2
DALLAS	Dallas i-button Reader
BATTERY	Smart Battery: 3S1P 2050mAh Smart Battery: 4S1P 2050mAh

APEXA G - Datasheet / PDF ( Arabic & English)

Model : APEXA G | Version : AR180817 | Date : 30/05/2021

- Download
